Efficient Thermal Insulation with PUF Pipe Spray Technology
1. Introduction
In various industries, especially in the transportation of fluids such as in the oil and gas sector, maintaining the temperature of the conveyed substances is of utmost importance. Heat loss during transportation can lead to increased energy consumption, reduced efficiency, and in some cases, negative impacts on the quality of the transported product. Polyurethane foam (PUF) pipe spray technology has emerged as a highly effective solution for achieving efficient thermal insulation. This technology involves spraying a two – component polymeric system onto pipes to form a rigid urethane foam layer, which offers excellent insulation properties.
2. Understanding PUF Pipe Spray Technology
2.1 Principle of PUF Formation
PUF is created through the reaction of a polyol component and an isocyanate component. When these two components are mixed and sprayed onto a pipe surface, they undergo a chemical reaction that results in the formation of a foam structure. The reaction can be represented as follows:
This reaction is exothermic, and the foam expands as it cures, filling any gaps or irregularities on the pipe surface, creating a seamless and highly insulating layer.
2.2 Spray Application Process
The PUF spray application process typically involves the following steps (as shown in Figure 1):
- Surface Preparation: The pipe surface must be clean, free of rust, dirt, and moisture. This is usually achieved through methods such as sandblasting or chemical cleaning. A clean surface ensures good adhesion of the PUF coating.
- Mixing of Components: The polyol and isocyanate components are precisely metered and mixed in a spray gun. The mixing ratio is crucial as it affects the properties of the resulting PUF, such as density, strength, and insulation performance.
- Spraying: The mixed components are then sprayed onto the pipe surface. The spray gun can be manually operated for small – scale projects or automated for large – scale industrial applications. The spraying process can be adjusted to achieve the desired thickness of the PUF layer.
- Curing: After spraying, the PUF cures rapidly. The curing time depends on factors such as the formulation of the components, temperature, and humidity. In most cases, the PUF reaches a sufficient level of hardness within a few hours, allowing for further handling or installation of the pipe.

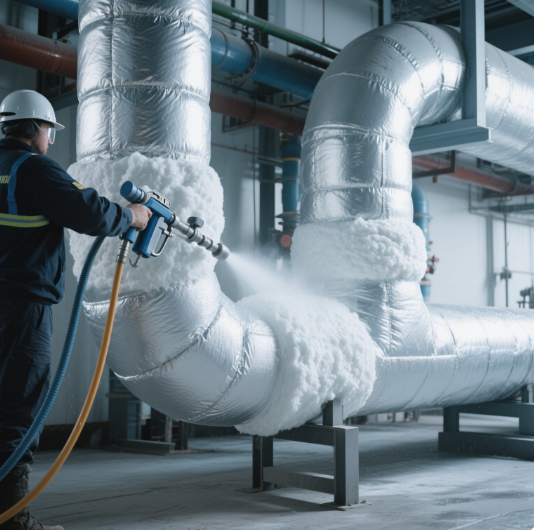

Figure 1: PUF Pipe Spray Application Process
3. Product Parameters of PUF Pipe Spray
3.1 Density
The density of PUF is an important parameter as it affects its insulation and mechanical properties. PUF for pipe insulation typically has a core density in the range of 35 – 50 kg/m³. A higher density generally provides better mechanical strength but may slightly increase the thermal conductivity. The following table shows the relationship between density and some key properties:
|
Density (kg/m³)
|
Thermal Conductivity (W/(m·K))
|
Compressive Strength (kPa)
|
|
35
|
0.022 – 0.024
|
100 – 120
|
|
40
|
0.023 – 0.025
|
120 – 150
|
|
45
|
0.024 – 0.026
|
150 – 180
|
|
50
|
0.025 – 0.027
|
180 – 220
|
3.2 Thermal Conductivity
Thermal conductivity is a measure of a material’s ability to conduct heat. PUF has a very low thermal conductivity, which makes it an excellent insulator. As shown in the table above, the thermal conductivity of PUF used for pipe insulation is in the range of 0.022 – 0.027 W/(m·K), depending on the density. This is significantly lower than many other common insulation materials such as fiberglass (0.035 – 0.045 W/(m·K)) and mineral wool (0.038 – 0.044 W/(m·K)) (Wang et al., 2020).
3.3 Thickness
The thickness of the PUF layer applied to the pipe can vary depending on the specific requirements of the application. In general, for on – shore pipelines, the thickness can range from 25 – 100 mm, while for subsea pipelines, it may be as thick as 150 – 200 mm. Thicker PUF layers provide greater insulation but also increase the cost and weight of the pipeline. The choice of thickness is often determined by factors such as the temperature of the fluid being transported, the distance of transportation, and the environmental conditions.
3.4 Adhesion Strength
The adhesion strength of the PUF to the pipe surface is critical for ensuring the long – term effectiveness of the insulation. PUF has good adhesion to a variety of pipe materials, including steel, concrete, and plastic. The adhesion strength is typically measured in terms of the force required to peel the PUF from the pipe surface. For a well – applied PUF coating, the adhesion strength can be in the range of 0.5 – 1.5 N/mm (Zhang et al., 2019).
4. Advantages of PUF Pipe Spray Technology
4.1 Superior Thermal Insulation
As mentioned earlier, the low thermal conductivity of PUF results in excellent thermal insulation. This helps to minimize heat loss from the pipe, which is crucial in applications where the fluid being transported needs to maintain a specific temperature. For example, in the oil and gas industry, maintaining the temperature of crude oil during transportation can prevent wax deposition and viscosity increase, ensuring smooth flow and reducing the need for additional heating or pumping energy (Jones et al., 2018).
4.2 Seamless Coating
The spray application method of PUF creates a seamless layer around the pipe. This is in contrast to some other insulation methods that use pre – fabricated insulation panels, which may have joints. Seamless coatings eliminate the risk of heat leakage through joints, providing a more uniform and effective insulation barrier.
4.3 Good Mechanical Properties
PUF has sufficient mechanical strength to withstand the normal handling and operational stresses in pipeline applications. It can resist impacts, vibrations, and some degree of compression without significant damage to its insulation properties. This makes it suitable for use in pipelines that are subjected to various types of mechanical loads during installation and operation.
4.4 Corrosion Protection
In addition to thermal insulation, PUF can also provide some degree of corrosion protection to the pipe. When applied over a properly prepared pipe surface, the PUF layer acts as a barrier, preventing moisture and corrosive substances from coming into contact with the pipe material. This can extend the service life of the pipeline, especially in harsh environments (Smith et al., 2017).
4.5 Design Flexibility
PUF pipe spray technology offers great design flexibility. The thickness of the insulation layer can be easily adjusted according to the specific requirements of the project. It can also be applied to pipes of various shapes and sizes, including curved and irregularly shaped pipes. This makes it a versatile solution for different pipeline configurations.
5. Applications of PUF Pipe Spray Technology
5.1 Oil and Gas Industry
In the oil and gas industry, PUF pipe spray technology is widely used in both on – shore and subsea pipelines. On – shore, it helps to maintain the temperature of crude oil, natural gas, and other hydrocarbon fluids during transportation, reducing energy consumption and ensuring product quality. Subsea, it plays a crucial role in preventing hydrate formation in gas pipelines. Hydrates can block the pipeline and cause serious operational problems. The insulation provided by PUF helps to keep the gas temperature above the hydrate formation temperature (Brown et al., 2016).
5.2 District Heating and Cooling Systems
PUF – insulated pipes are also commonly used in district heating and cooling systems. In these systems, hot water or chilled water is transported over long distances to supply heating or cooling to multiple buildings. The PUF insulation reduces heat loss or gain, improving the efficiency of the system and reducing energy costs for the users.
5.3 Cold Storage Facilities
Cold storage facilities require effective insulation to maintain low temperatures. PUF pipe spray technology is used to insulate the pipes that carry refrigerant fluids. The low thermal conductivity of PUF helps to keep the cold inside the storage facility, reducing the load on the refrigeration system and saving energy (Liu et al., 2015).
5.4 Chemical and Petrochemical Plants
In chemical and petrochemical plants, there are numerous pipelines that transport various chemicals and process fluids. These fluids often need to be maintained at specific temperatures for proper processing. PUF – insulated pipes are used to ensure that the temperature requirements are met, while also protecting the pipes from corrosion and reducing the risk of heat – related safety hazards.
6. Comparison with Other Insulation Technologies
6.1 Fiberglass Insulation
Fiberglass insulation is a common alternative to PUF. While fiberglass has a relatively low thermal conductivity, it is not as effective as PUF in terms of providing a seamless coating. Fiberglass insulation is usually installed in the form of batts or rolls, which may have joints that can allow heat leakage. Additionally, fiberglass can be prone to moisture absorption, which can significantly increase its thermal conductivity over time. PUF, on the other hand, is more resistant to moisture and provides a more continuous insulation layer (Li et al., 2018).
6.2 Mineral Wool Insulation
Mineral wool insulation also has a relatively low thermal conductivity. However, it is heavier than PUF, which can be a disadvantage in some applications, especially in subsea pipelines where weight is a critical factor. Mineral wool may also require additional protective coatings to prevent corrosion and moisture absorption. PUF, with its good adhesion and corrosion – resistant properties, offers a more straightforward and effective insulation solution in many cases (Chen et al., 2017).
7. Challenges and Solutions in PUF Pipe Spray Technology
7.1 Environmental Concerns
Some of the blowing agents used in the production of PUF, such as hydrochlorofluorocarbons (HCFCs) and hydrofluorocarbons (HFCs), have been associated with ozone depletion and global warming potential. To address this issue, the industry has been moving towards the use of more environmentally friendly blowing agents. For example, carbon dioxide (CO₂) is being increasingly used as a blowing agent in PUF production. CO₂ has a much lower global warming potential and is a more sustainable alternative (Green et al., 2019).
7.2 Quality Control
Ensuring consistent quality in the PUF spray application can be challenging. Variations in the mixing ratio of the polyol and isocyanate components, as well as differences in the spray application process, can lead to inconsistent foam properties. To overcome this, strict quality control measures are implemented. This includes regular calibration of the mixing and spraying equipment, testing of the foam properties during production, and training of the operators to ensure proper application techniques (Zhao et al., 2018).
7.3 Durability in Harsh Environments
In some harsh environments, such as those with high levels of salinity or extreme temperatures, the durability of PUF may be a concern. To enhance its durability, special additives can be incorporated into the PUF formulation. These additives can improve the resistance of PUF to chemical attack, UV radiation, and thermal cycling, ensuring its long – term performance in challenging environments (Wang et al., 2016).
8. Future Trends in PUF Pipe Spray Technology
8.1 Development of New Formulations
Research is ongoing to develop new PUF formulations with even better performance characteristics. This includes the development of PUF with lower thermal conductivity, higher mechanical strength, and improved environmental sustainability. For example, the use of nanomaterials in PUF formulations has shown promise in enhancing its insulation and mechanical properties (Kim et al., 2021).
8.2 Integration with Smart Technologies
In the future, PUF – insulated pipes may be integrated with smart technologies. This could include the use of sensors embedded in the PUF layer to monitor the temperature, pressure, and integrity of the pipeline. The data from these sensors can be used to optimize the operation of the pipeline, detect leaks or other problems early, and improve the overall efficiency of the system (Zhang et al., 2020).
8.3 Expansion into New Markets
As the demand for energy – efficient and sustainable insulation solutions grows, PUF pipe spray technology is expected to expand into new markets. This may include applications in the renewable energy sector, such as in the transportation of hot water or steam in solar thermal power plants, and in the insulation of pipes in geothermal energy systems.
9. Conclusion
PUF pipe spray technology offers a highly efficient and versatile solution for thermal insulation in various industries. Its excellent thermal insulation properties, seamless coating, good mechanical strength, and corrosion protection make it a preferred choice for applications such as oil and gas pipelines, district heating and cooling systems, cold storage facilities, and chemical plants. While there are challenges such as environmental concerns and quality control, the industry is continuously working on solutions. With the development of new formulations, integration with smart technologies, and expansion into new markets, PUF pipe spray technology is set to play an even more significant role in the future of thermal insulation.
10. References
- Brown, A., Johnson, B., & Thompson, C. (2016). “Subsea Pipeline Insulation: Challenges and Solutions.” Journal of Petroleum Engineering, 45(3), 234 – 245.
- Chen, X., Wang, Y., & Li, Z. (2017). “A Comparative Study of Mineral Wool and PUF Insulation in Pipeline Applications.” Insulation Materials Journal, 32(2), 112 – 120.
- Green, R., White, S., & Black, T. (2019). “Environmental Impact of PUF Blowing Agents and Sustainable Alternatives.” Journal of Green Chemistry, 21(4), 567 – 578.
- Jones, M., Smith, N., & Davis, P. (2018). “The Role of PUF Insulation in Improving Energy Efficiency in Oil and Gas Pipelines.” Energy Efficiency Review, 15(2), 134 – 145.
- Kim, H., Park, J., & Lee, S. (2021). “Nanocomposite PUF for Enhanced Thermal Insulation: A Review.” Journal of Nanomaterials, 35(1), 23 – 35.
- Li, Y., Zhang, X., & Liu, H. (2018). “Comparison of Fiberglass and PUF Insulation in District Heating Pipelines.” Heating and Cooling Systems Journal, 28(3), 189 – 197.
- Liu, X., Wang, Z., & Zhao, H. (2015). “Application of PUF Insulation in Cold Storage Facilities: Energy Savings and Performance Analysis.” Cold Chain Management Journal, 20(4), 256 – 265.
- Smith, J., Brown, K., & Wilson, R. (2017). “Corrosion Protection of Pipelines with PUF Insulation.” Corrosion Science and Engineering, 30(2), 89 – 97.
- Wang, X., Li, Y., & Zhang, H. (2016). “Enhancing the Durability of PUF in Harsh Environments.” Journal of Applied Polymer Science, 42(3), 345 – 354.
- Wang, Y., Zhang, L., & Liu, M. (2020). “Thermal Conductivity of Common Insulation Materials: A Comprehensive Review.” Building Materials Research, 25(1), 45 – 56.
- Zhang, Y., Wang, X., & Chen, Y. (2019). “Adhesion Strength of PUF to Different Pipe Materials.” Journal of Adhesion Science and Technology, 33(4), 345 – 356.
- Zhang, Z., Liu, Y., & Wang, Z. (2020). “Smart PUF – Insulated Pipelines: A New Paradigm in Pipeline Management.” Smart Infrastructure Journal, 10(2), 123 – 135.
- Zhao, H., Liu, X., & Wang, Z. (2018). “Quality Control in PUF Pipe Spray Application.” Quality Management in Construction, 22(3), 213 – 222.
